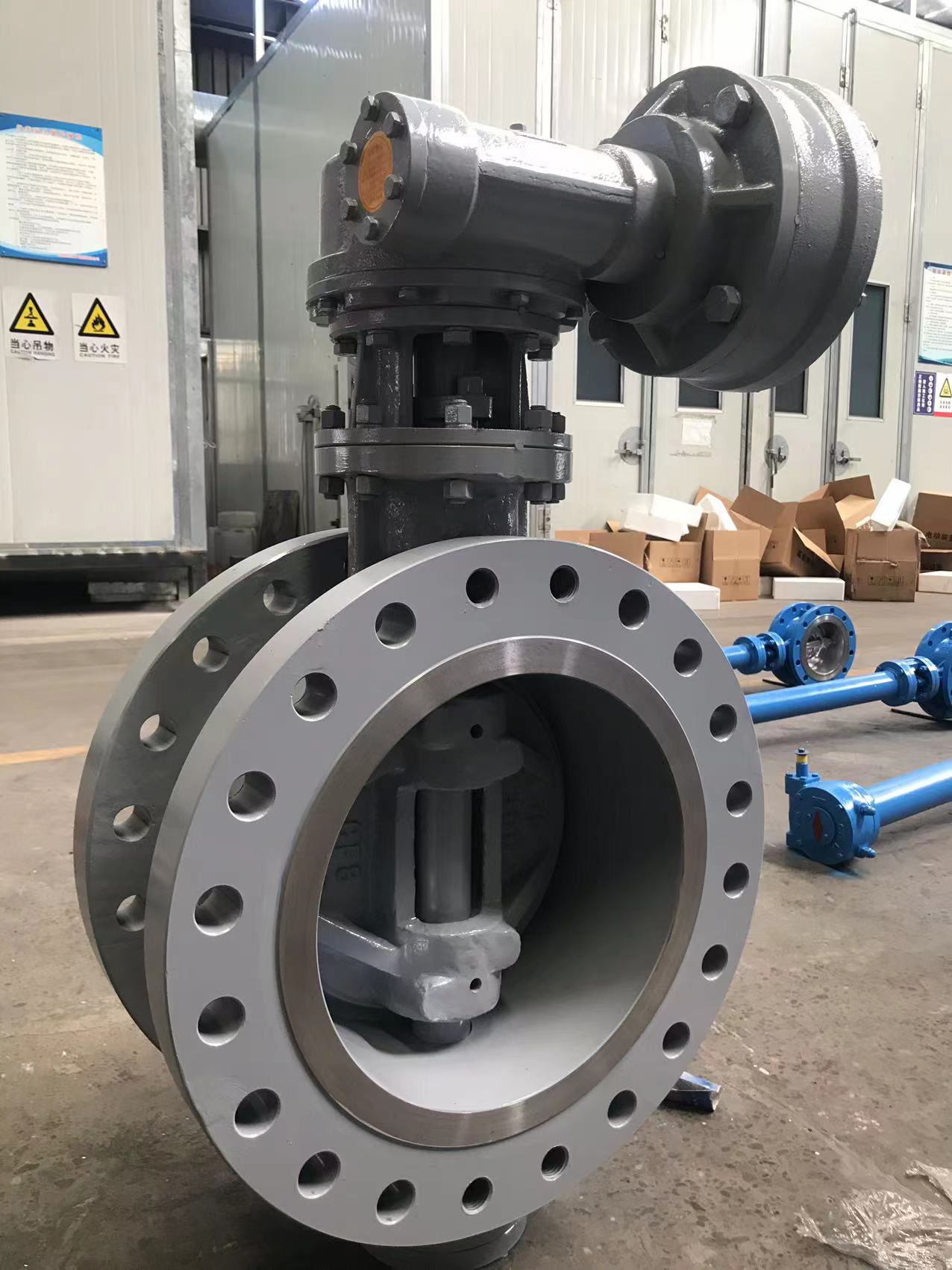

Large diameter API Standard butterfly valve ready to be packed and shipped

The new batch of valves produced by YUDA Valve is going to be shipped, and the API Standard Butterfly Valve is exported to European countries.

The API Standard butterfly valve adopts a triple eccentric structure with reliable sealing performance, ensuring that the disc does not touch the sealing seat when opening, eliminating the uneven load on the sealing seat, prolonging the service life, ensuring reliable sealing performance, and having the advantages of high temperature resistance, wear resistance and corrosion resistance.

Main technical parameters and materials:
DN (mm): 2〞-80〞
PN (Mpa): 150Lb/300Lb/600LB
Applicable medium: Water, steam, oil, seawater, etc.
Applicable temperature:  -29℃～550℃

Body: WCB, 304, 316, CF8M, CF3M
Disc: WCB, 304, 316,CF8M, CF3M
Stem: 17-4PH, 304, 316, 2Cr13
Seal ring: SS+XB450, SS+Graphite

Yuda Valve specializes in double eccentric butterfly valve, triple eccentric butterfly valve, GOST standard butterfly valve, API standard butterfly valve, etc.

For more information click: www.hnydvalve.com.
