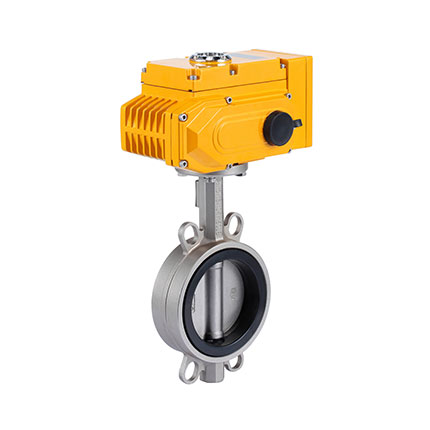

Wafer type center lined butterfly valves

Design: BS EN593
Flange: EN1092-1 GOST 33259-2015
Face to Face: EN558-1-Series 13; Series 14;
Materials: Body and disc : GGG40/GGG50/WCB or other as request
parameter(Dimension: mm)
parameter(Dimension: mm)
DN (mm) 50—1200mm
PN (Mpa) 1.0~1.6
Operation Handle / gearbox / electric actuator /pneumatic
Control type ON/OFF
Power pressure AC220V AC380V
PN Body 1.5~2.4
Mpa Sealing testing 1.1~1.76
Main parts Body Cast iron ,GGG 40 ,WCB  CF8 , CF8M ,CF3M
Disc CF8 , CF8M , CF3M , 2507,1.4469 , 1.4529
Seal EPDM , NBR , PTFE
Connection Wafer , flange
Standard As request
