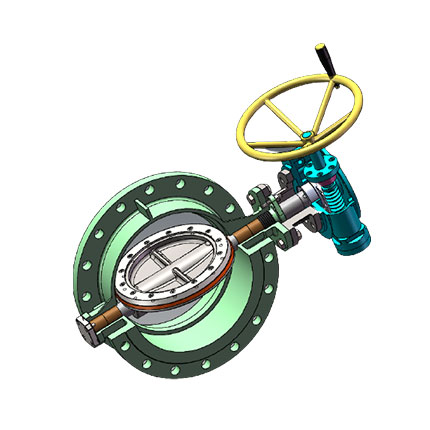

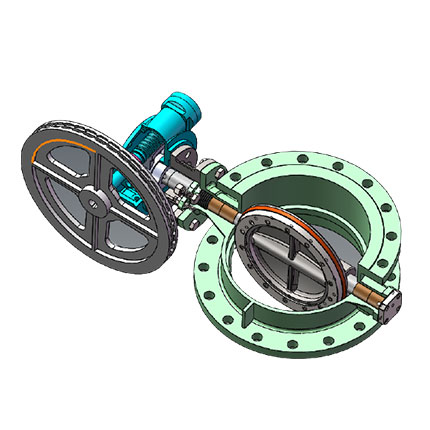

DN350-DN500 D343Double flange butterfly valves

Design: BS EN593

Flange: EN1092-1 /GOST 33259-2015

Face to Face: EN558-1-Series 13; Series 14;

Materials: WCB/LCB/LCC/LC1/CF8/CF8M/SS321/SS904L

Send Email

Chat Now

Download

Share With:

Briefs

Standards

Optional

Remarks

parameter(Dimension: mm)

Briefs

Triple eccentric design;

Bidirectional type zero leakage

Size rage from DN350—DN 500mm

Pressure rating: PN10 – PN25 from DN350-DN 500mm PN 40 for DN 200-DN 1200mm

Applications: water, hot water, oil and gas etc.

Standards

Design:

BS EN593

Flange:

EN1092-1 /GOST 33259-2015

Face to Face:

EN558-1-Series 13; Series 14;

WCB/LCB/LCC/LC1/CF8/CF8M/SS321/SS904L

Optional

Electric actuator / pneumatic actuator/ bare shaft / gearbox +ready flange

Remarks

Design and manufacture as per BS EN593

Face to face dimensions as per BS EN558 Series 13

Flange dimensions as per Gost 33259-2015

Pressure test as per BS EN12266-1

Pressure test		PN10	PN16	PN25
Shell		15bar	24bar	37.5bar
Seal	Water	11bar	17.6bar	27.5bar
Seal	Air	6bar	6bar	6bar

Media: Water, oil and gas Temperature: -15~350℃ Dimension: mm

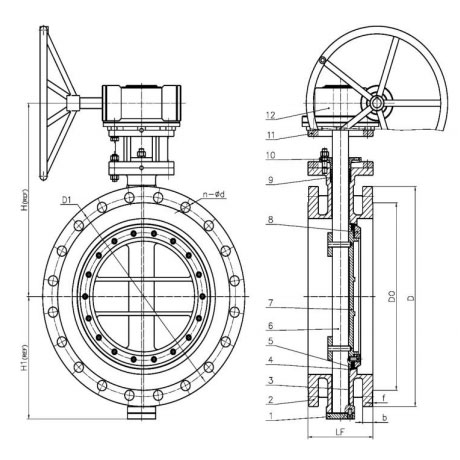

Material for main parts

No.	Part Name	Material	No.	Part Name	Material
1	Cover	Q235	7	Disc	WCB
2	Body	WCB	8	Retainer	Q235
3	Bushing	Self- lubricating	9	Packing	Graphite
4	Body seat	SS304	10	Gland	WCB
5	Disc seat	SS304+ XB450	11	Yoke	WCB
6	Stem	2Cr13	12	Gear box	Ductile iron

parameter(Dimension: mm)

DN	PN	LF	D	D0	D1	n-Ød		f	b	H #	H1 #
350	10	190	505	429	460	16-Ø22		4	26	468	295
	16		520	429	470	16-Ø26			30	468	295
	25		555	448	490	16-Ø33	4-M30 *		38	490	340
400	10	216	565	480	515	16-Ø26			26	508	328
	16		580	480	525	16-Ø30			32	540	326
	25		620	503	550	16-Ø36	4-M33 *		40	517	368
450	10	222	615	530	565	20-Ø26			28	537	378
	16		640	548	585	20-Ø30			34	537	378
	25		670	548	600	20-Ø36	4-M33 *		40	562	410
500	10	229	670	582	620	20-Ø26			28	610	378
	16		715	609	650	20-Ø33			36	628	400
	25		730	609	660	20-Ø36	4-M33 *		44	660	435

The "n" of "n-Ød" is the total number of holes, 4-Mxx means that the 4 holes at stem upper and lower position are threaded holes. "H" and "H1" for reference only.
